Jayesh M. Dhadphale

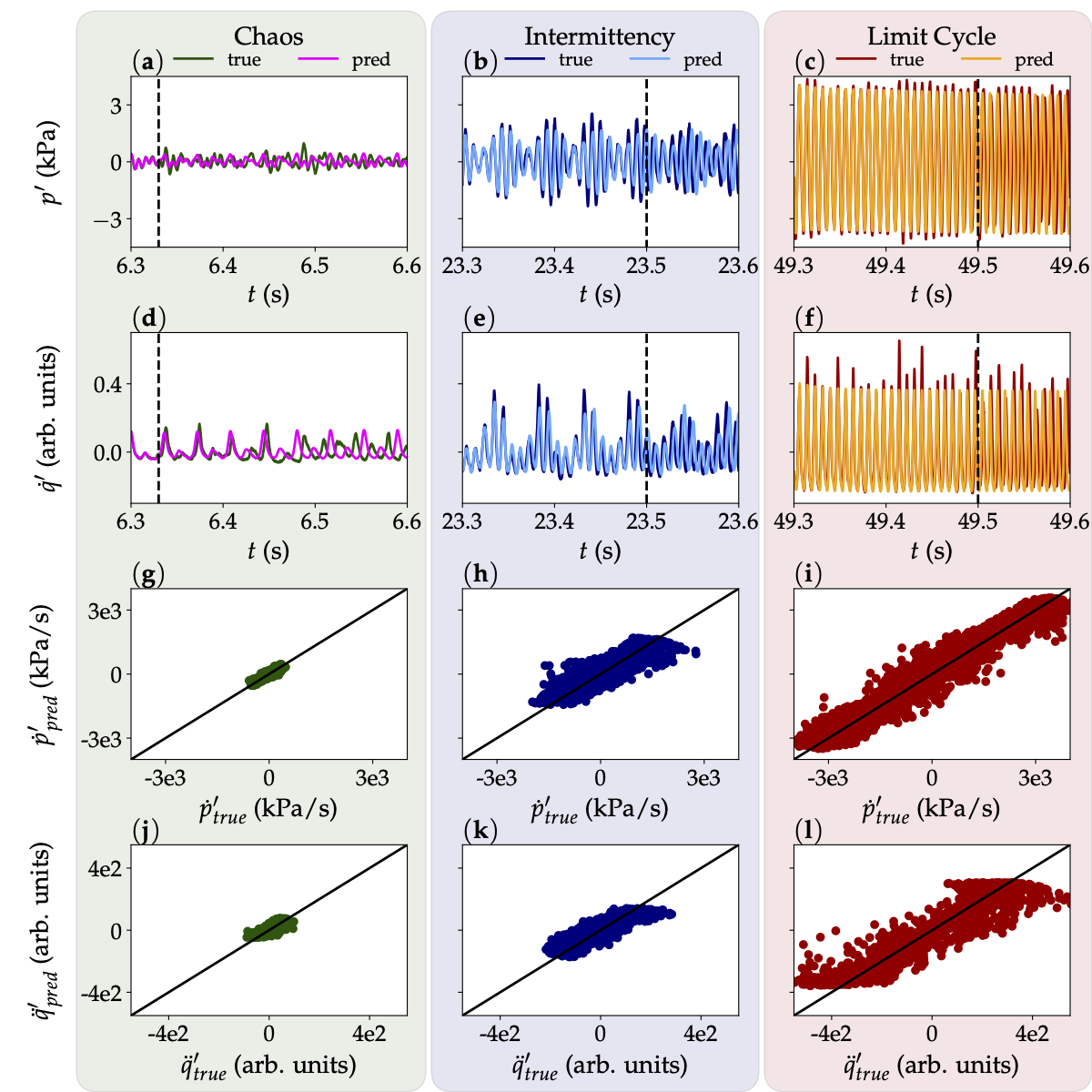

Thermoacoustic instability in a reacting flow field is characterized by high amplitude pressure fluctuations driven by a positive coupling between the unsteady heat release rate and the acoustic field of the combustor. In a turbulent flow, the transition of a thermoacoustic system from a state of chaos to periodic oscillations occurs via a state of intermittency. During the transition to periodic oscillations, the unsteady heat release rate synchronizes with the acoustic pressure fluctuations. Thermoacoustic systems are traditionally modeled by coupling the model for the heat source and the acoustic subsystem, each estimated independently. The response of the unsteady heat source, i.e., the flame, to acoustic fluctuations is characterized by introducing unsteady external forcing. The forced response of the flame need not be the same in the presence of an acoustic field due to their nonlinear coupling. Instead of characterizing individual subsystems, we introduce a neural ordinary differential equation (neural ODE) framework to model the thermoacoustic system as a whole. The neural ODE model for the thermoacoustic system uses time series of the heat release rate and the pressure fluctuations, measured simultaneously without introducing any external perturbations, to model their coupled interaction. Furthermore, we use the parameters of neural ODE to define an anomaly measure that represents the proximity of system dynamics to limit cycle oscillations and thus provide an early warning signal for the onset of thermoacoustic instability.

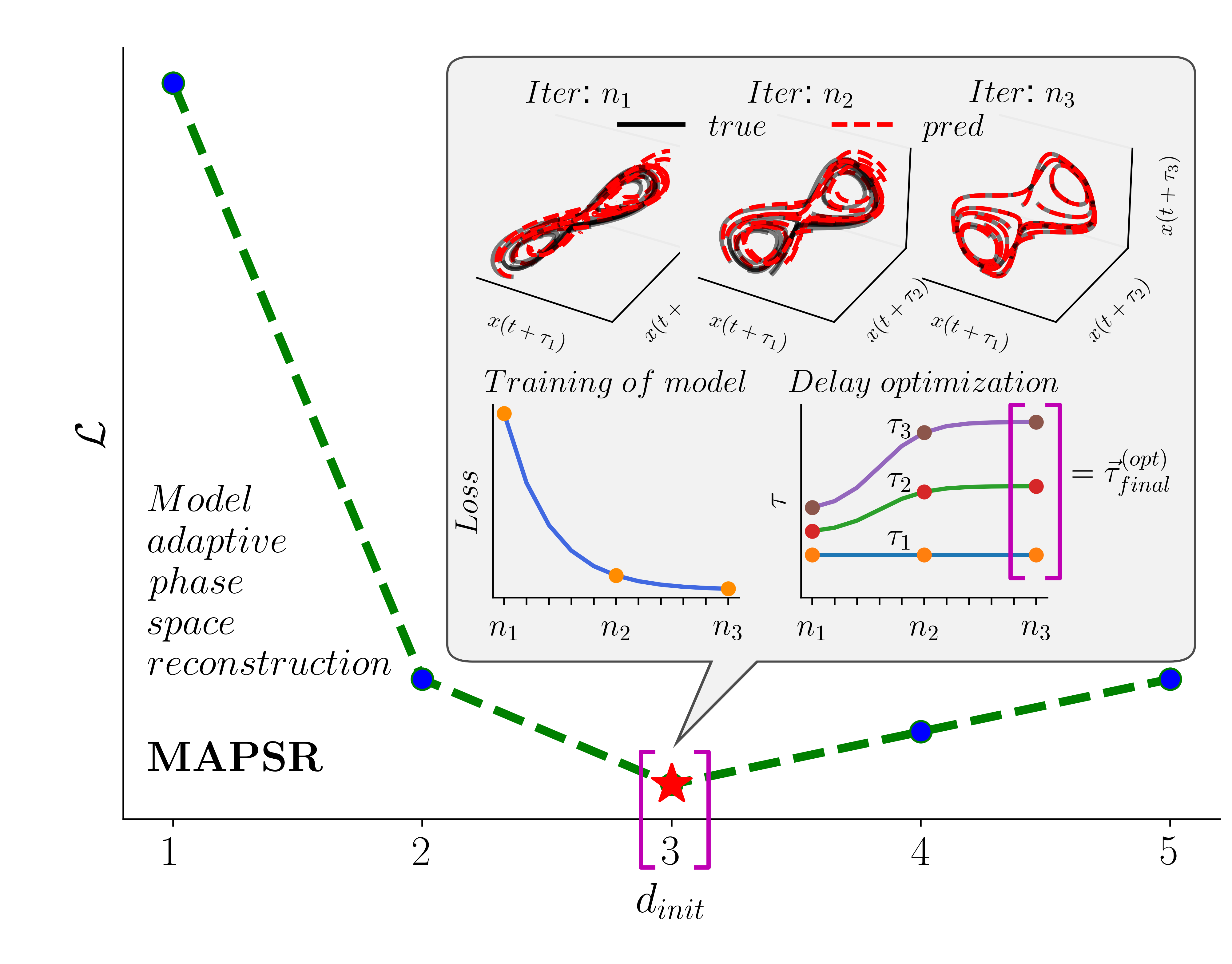

Phase space reconstruction (PSR) methods allow for the analysis of low-dimensional data with methods from dynamical systems theory, but their application to prediction models, such as those from machine learning (ML), is limited. Therefore, we here present a model adaptive phase space reconstruction (MAPSR) method that unifies the process of PSR with the modeling of the dynamical system. MAPSR is a differentiable PSR based on time-delay embedding and enables ML methods for modeling. The quality of the reconstruction is evaluated by the prediction loss. The discrete-time signal is converted into a continuous-time signal to achieve a loss function, which is differentiable with respect to the embedding delays. The delay vector, which stores all potential embedding delays, is updated along with the trainable parameters of the model to minimize prediction loss. Thus, MAPSR does not rely on any threshold or statistical criterion for determining the dimension and the set of delay values for the embedding process. We apply the MAPSR method to uni- and multivariate time series stemming from chaotic dynamical systems and a turbulent combustor. We find that for the Lorenz system, the model trained with the MAPSR method is able to predict chaotic time series for nearly seven to eight Lyapunov time scales, which is found to be much better compared to other PSR methods [AMI-FNN (average mutual information-false nearest neighbor) and PECUZAL (Pecora-Uzal) methods]. For the univariate time series from the turbulent combustor, the long-term cumulative prediction error of the MAPSR method for the regime of chaos stays between other methods, and for the regime of intermittency, MAPSR outperforms other PSR methods.
